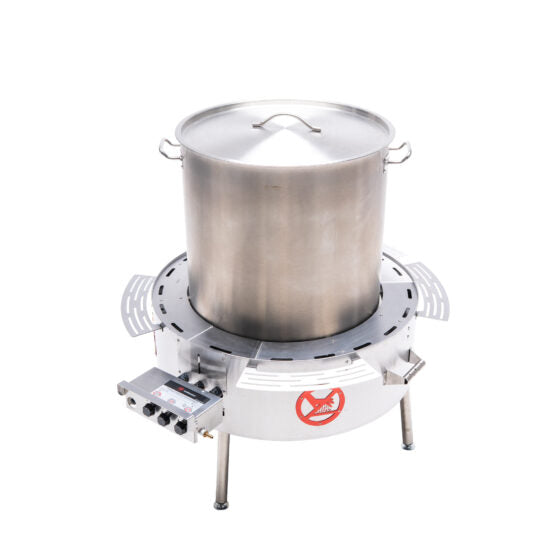

GrillSymbol Soup Station with Gas Burner 160 L
GrillSymbol Soup Station with Gas Burner 160 L
Couldn't load pickup availability
The Soup Station-160 is a high throughput catering unit developed in Estonia and tested in a Nordic climate. Capable of feeding up to 450 people (the calculated portion weight is 300 g per person). The soup kettle allows food to be cooked, stewed, fried and kept warm.
Set-up time max 10 minutes: legs and safety panels need to be attached and connected to the gas cylinder.
Half a pot (80 liters) of water takes 20-40 minutes to reach boiling temperature (+20º C vs 0º C), a full pot of water (approx. 160 liters) takes 40-80 minutes. Factors influencing the boiling temperature are the outside temperature, wind, precipitation and the initial temperature of the water to be heated.
Target group: caterers for major events, municipalities, defense, hospitals and other vital service providers.
It is a very compact product, which fits into a car with a larger storage space, together with a gas cylinder. When storing, allow for a shelf space of 100 x 100 x 80 cm.
The unit must be stored in dry conditions.
Specifications:

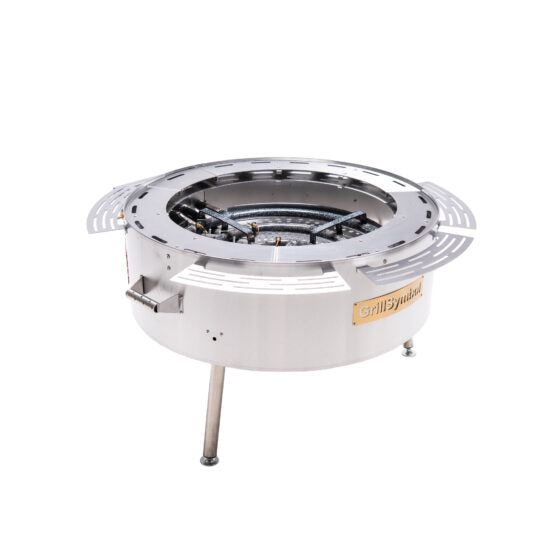

Heating device:
- Gas burner power: 25 KW, can be used both outdoors and indoors
- The gas burner is equipped with thermocouples that shut off the gas flow in case the flame should go out
- All three circuits of the gas burner can be adjusted separately
- The burner is equipped with a battery operated Click and Cook electric ignition
- Burner CE1312, certificate number 1312BS4973
- The external metal parts of the appliance are made of stainless steel
- Height from the ground to the lid of the soup pot: 104 cm
- Reducer and 1,2 m gas hose supplied
- Weight of heater: 35 kg
- Gas consumption: 2 kg per hour max capacity (only water is boiled when boiling water)
Soup pot:
- Capacity: 160 litres (up to 450 servings)
- Dimensions 60 x 60 cm, weight 19 kg
- Soup pot material: stainless steel (mark 304)
- Bottom thickness 5,8 mm, also suitable for induction hobs
- Non-heating stainless steel handles
- Lid with steam ventilation holes and hanging hook for the lid
NOTE! The appliance must not be used in flammable areas, on flammable surfaces or near flammable materials.
