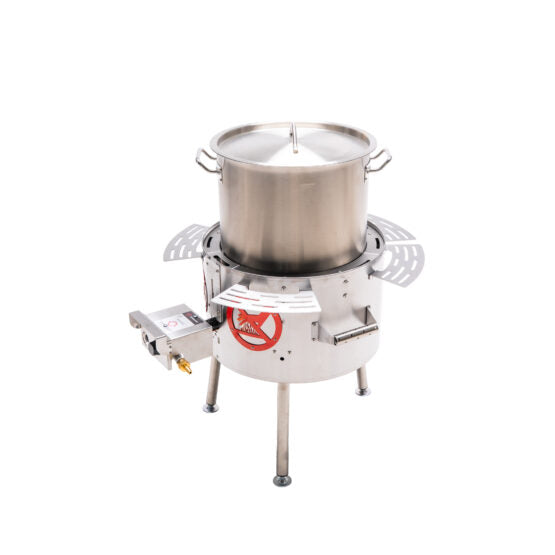

GrillSymbol Soup Station with Gas Burner 36 L
GrillSymbol Soup Station with Gas Burner 36 L
Couldn't load pickup availability
The Soup Station-36 is a device developed in Estonia and tested in winter conditions, which can feed up to 100 people: the weight of a portion is calculated at 300 g per person. The Soup Station allows food to be cooked, stewed, fried and kept warm.
Set-up time: max 5 minutes: legs and safety panels to be attached and connect with gas cylinder.
It takes 20-35 minutes (+20º C vs 0º C) to reach boiling temperature for half a pot (approx. 18 liters) of water, 35-70 minutes for a full pot (approx. 36 liters). Factors influencing the boiling temperature are the outside temperature, wind, precipitation and the initial temperature of the water to be heated.
Target group: caterers, agricultural micro-producers, municipalities, village councils, hiking and outdoor event organizers, defense structures, hospitals and other vital service providers.

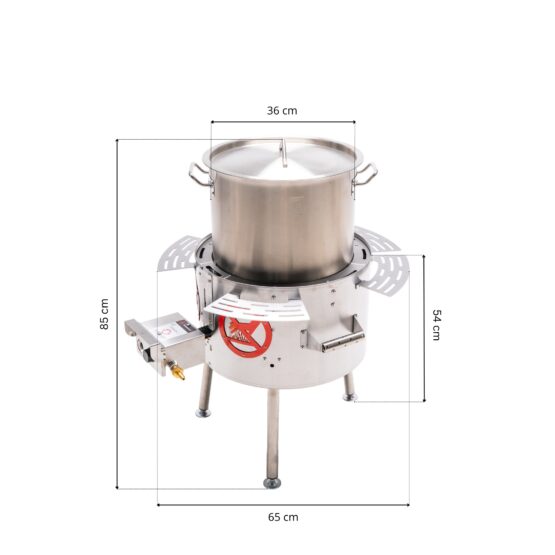

It is a very compact product that fits in any car, together with the gas cylinder. When storing, please allow a shelf space of 45 x 60 x 50 cm.
The unit must be stored in dry conditions.
Specifications:
Heating device:
- Gas burner power: 7 KW, can be used both outdoors and indoors.
- The gas burner is equipped with thermocouples that shut off the gas flow if the flame should go out.
- The burner has a battery operated Click and Cook electric ignition.
- Burner CE1312, certificate number 1312BS4973
- The external metal parts of the appliance are made of stainless steel.
- Height from the ground to the lid of the soup pot: 78 cm
- Reducer and 1,2 m gas hose supplied
- Weight of the heater: ca 14 kg
- Gas consumption: max capacity 1 kg/hour.
Soup pot:
- Capacity 36 litres
- Dimensions 36 x 36 cm, weight 7 kg
- Material of the soup pot: stainless steel (mark 304)
- Bottom thickness 5 mm, also suitable for induction hobs
- Non-heating stainless steel handles, 5 mm thick, for use with stainless steel cookware
- Lid with steam ventilation holes and lid hanging hook
NOTE! The appliance must not be stored in flammable areas, on flammable surfaces or near flammable materials.
